Window and door types are distinguished by their way of installation and method of opening.

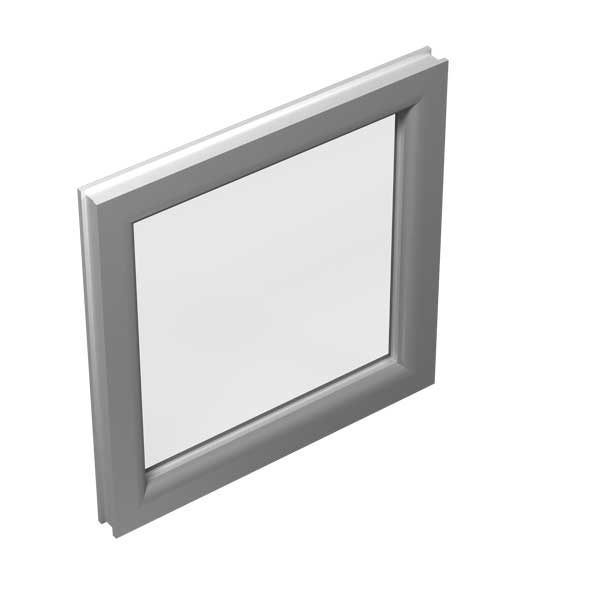

Fixed glazing
The glazing is inserted directly into the frame – there is no sash that can be opened.

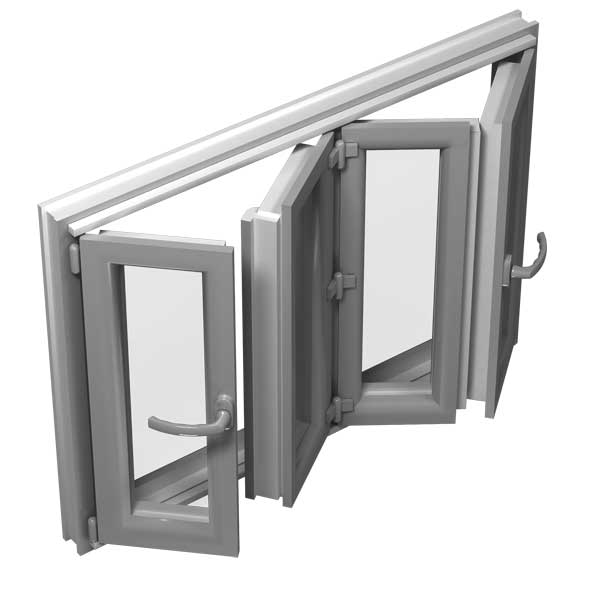

Folding window/ door
The sashes can be folded, each running along a runner rail.
lift-slide
The sash is lifted by moving and ensures a much better sealing than a sliding window/ door

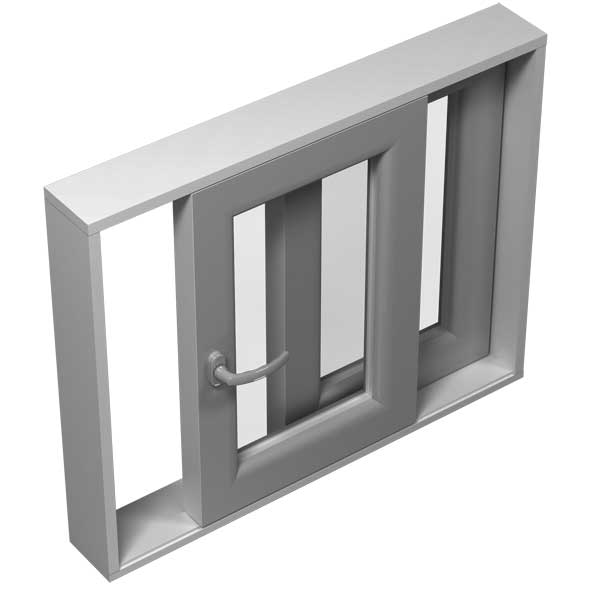

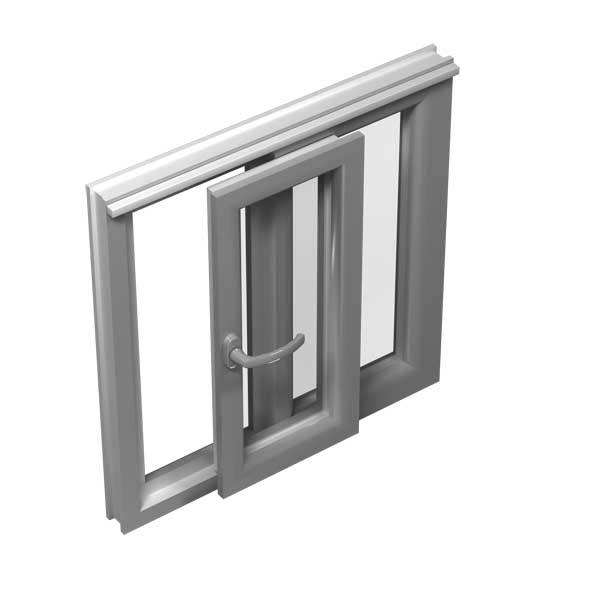

easy-slide
The sash can be slid to the side to open the window/ door.
Tilt-and-slide window/door
The sash can be tilted and slid to one side to open.
Folding window/ door
The sashes can be folded, each running along a runner rail.

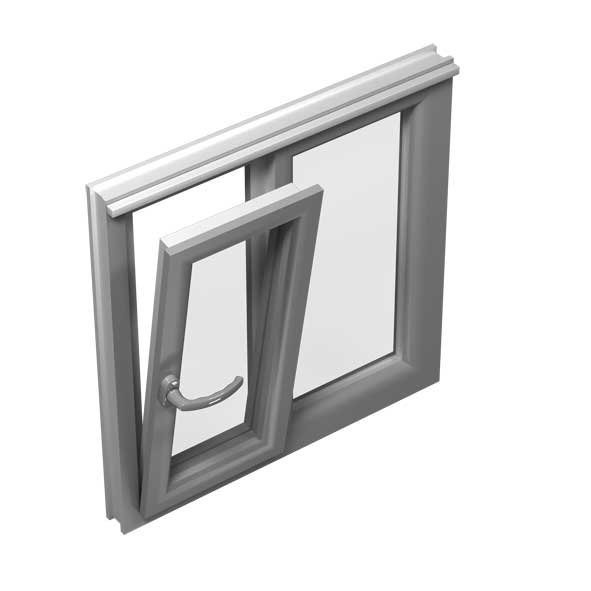

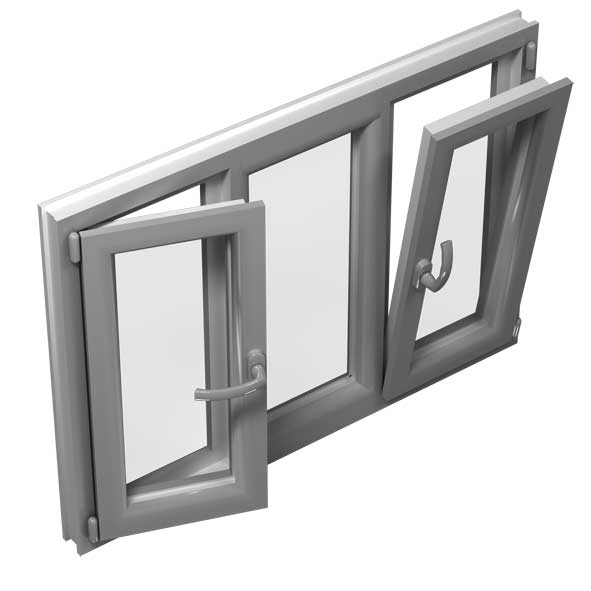

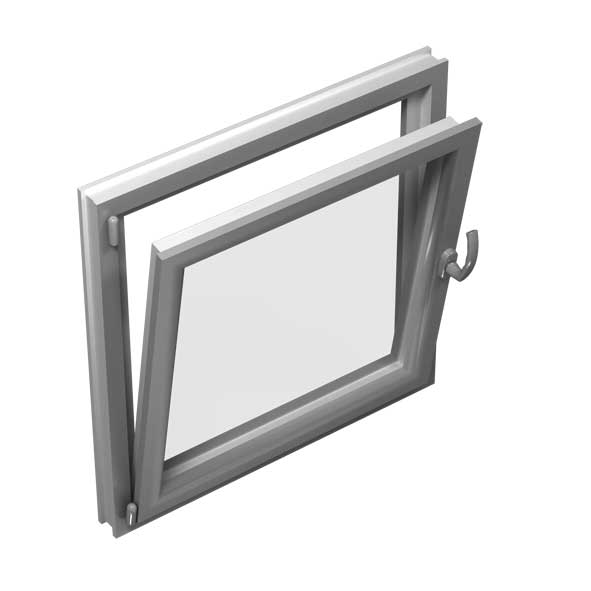

Tilt function - opening inwards
The window/ door can be tilted to ventilate your room but protects from intrusion.

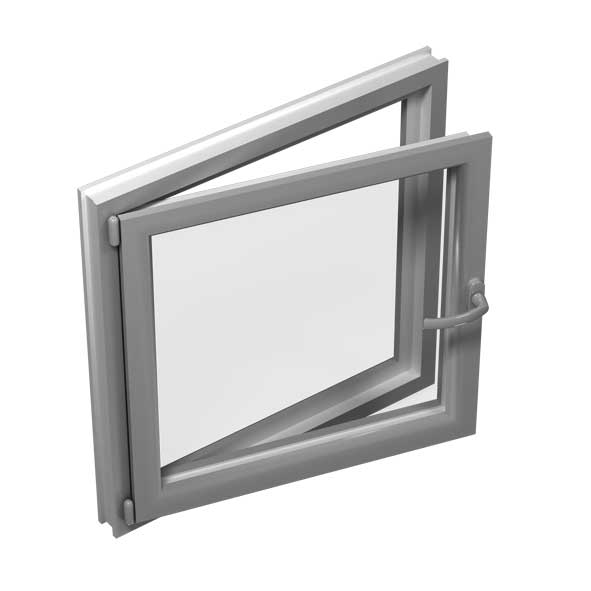

Casement - outward opening
The sash is to be opened
outwards

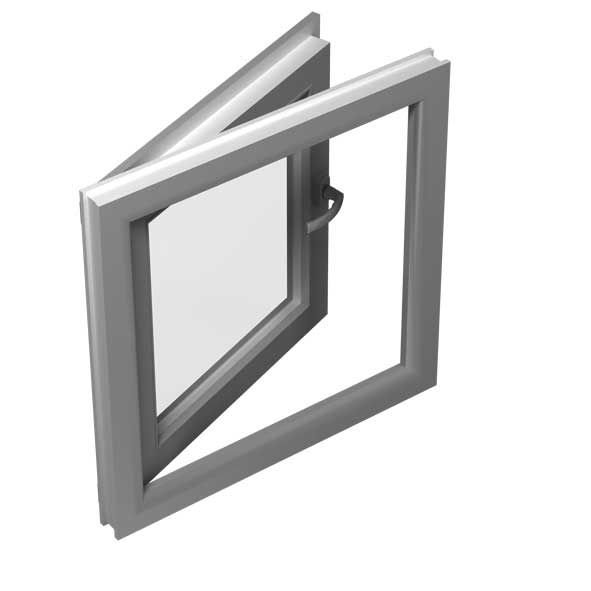

Turn function - opening inwards
The sash is to be opened outwards.
IDEAL 2000® 60mm Construction Depth
Features
- Glazing thickness up to 35mm
- Thermal insulation value Uf = 1.6W/m²K
- Outstanding sound insulation up to sound transmission class IV (43dB)
- Glazing beads and profiles in several shapes
- Concealed drainage is possible
- 3-chamber profile system
- Special security hardware guarantees the highest level of burglary protection

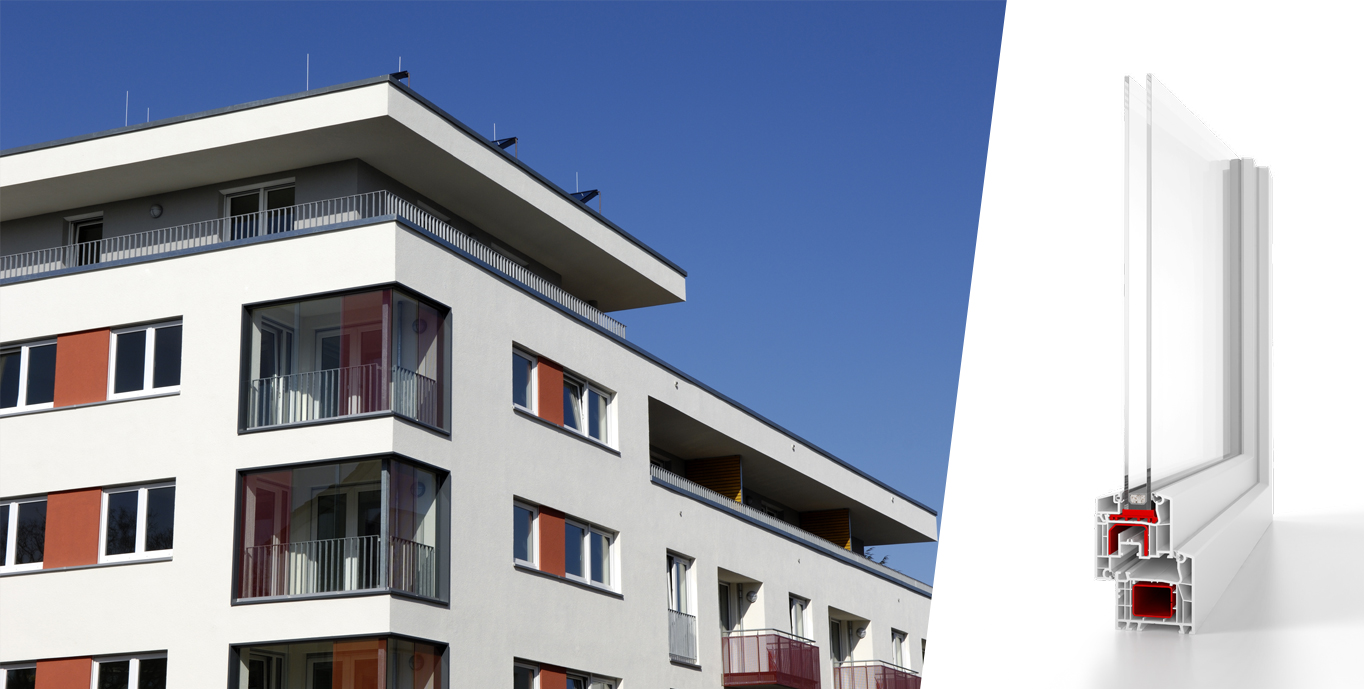

IDEAL 4000® 70mm Construction Depth
Features
- Uf = 1.3 W/m²K
- Uw =0.99W/m²K1)
- Uw =0.76W/m²K best possible option2)
- Up to RC2 burglary protection
- Up to 45 dB sound insulation (sound insulation class 4)
- Up to 41mm glazing
- Available in numerous decor variations
- Available with aluskin® aluminium shells
- Concealed drainage is possible
- Optional bonding inside (adhesive technology)

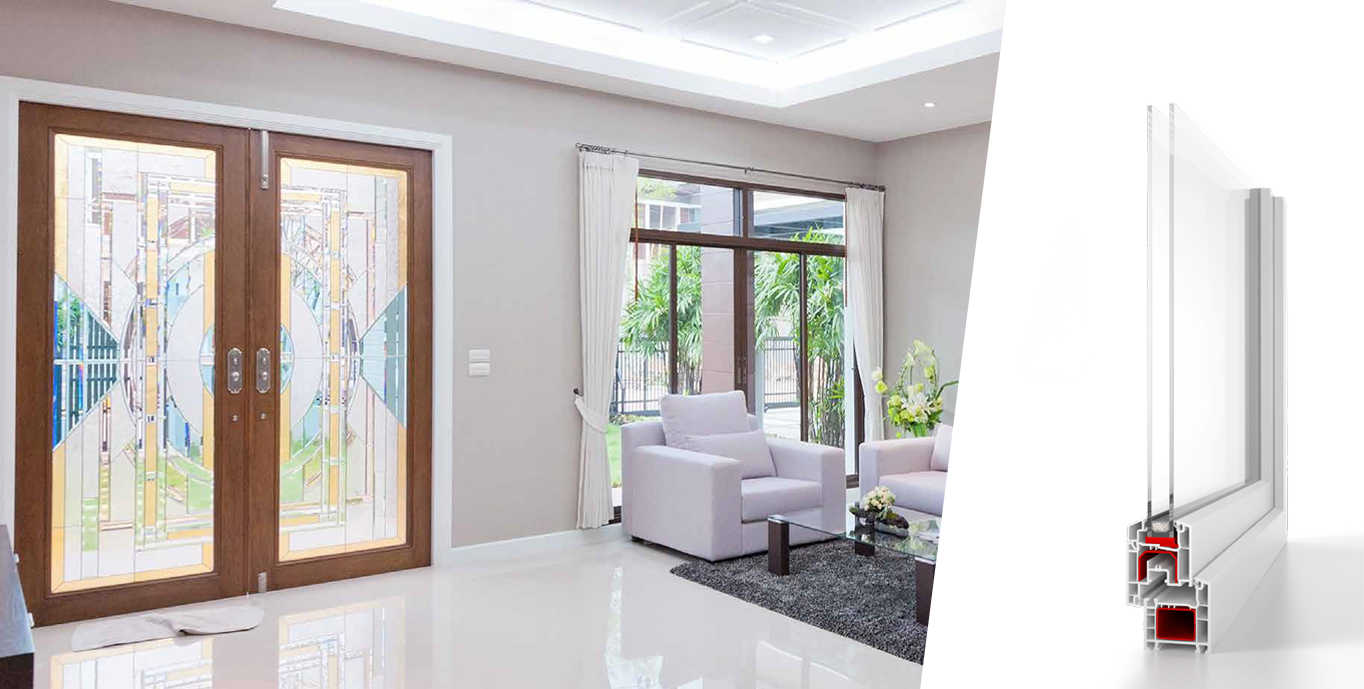

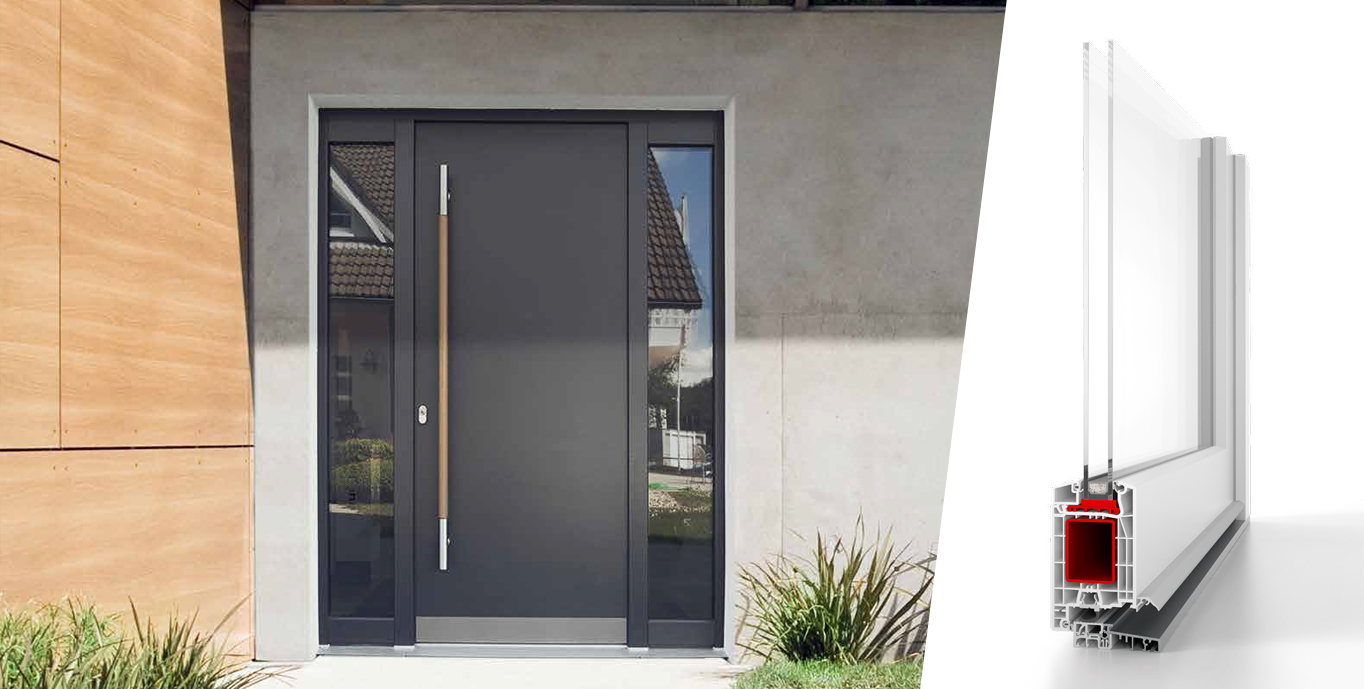

Front Door / 70 mm Front Door
Features
- 70mm construction depth
- Uf = 1.5 W/m²K
- Ud =1.1W/m²K1)
- Ud =0.88W/m²K best possible option2)
- Up to RC2 burglary protection
- Up to 41mm glazing / panel
- Recessed version, roundline version
- Weldable corner connectors for extra stability
- Many decor variations available
- Available with aluskin® aluminium shells
- Concealed drainage is possible

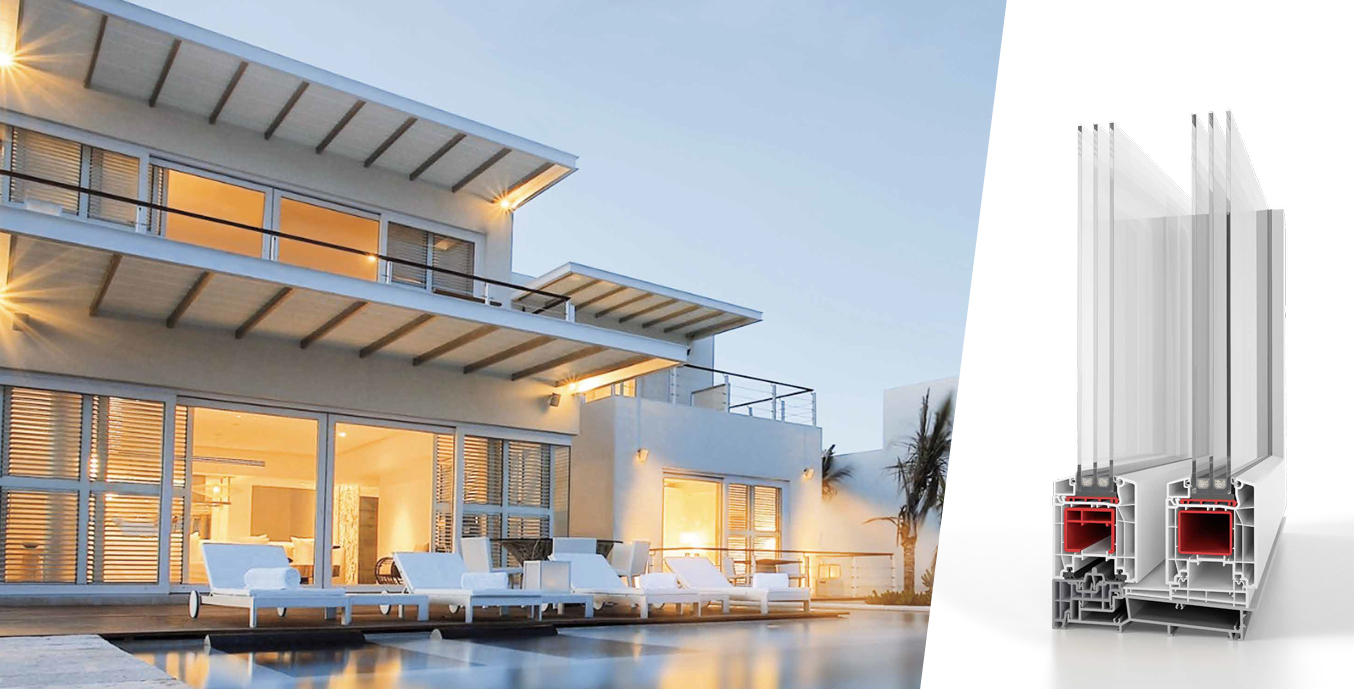

Lift-Slide 85mm Construction Depth
Features
- Up to RC2 burglary protection
- Up to 44 dB sound insulation (sound insulation class 4)
- Up to 51mm glazing
- Available in numerous decor variations
- Available with aluskin® aluminium shells
- Concealed drainage is possible
- Barrier-free option
- Fixframe option

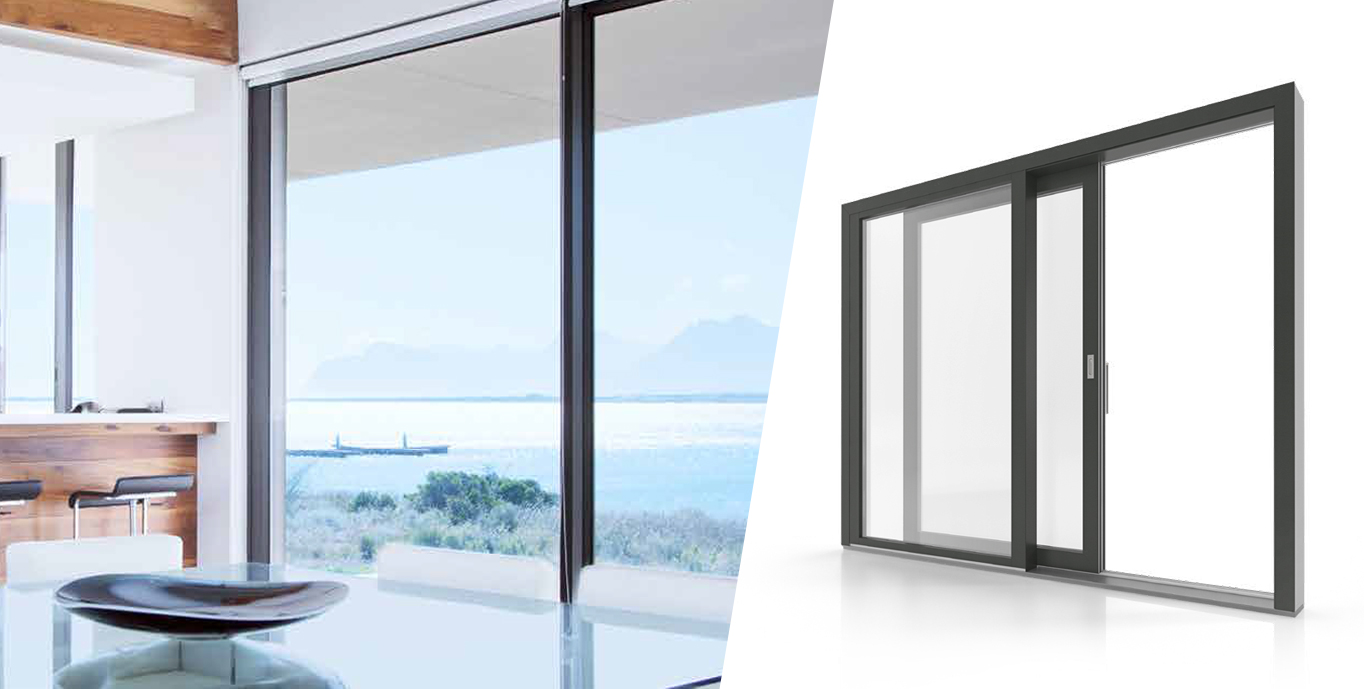

Smart-Slide
Features
- Small construction depth of 70mm
- Uf = 1.4 W/m²K
- Glazing and panel thickness up to 41mm possible (single- to triple-glazed)
- Modern classic-line design
- Concealed hardware technology
- Selection of opening mechanisms: schema A + C
- Available in numerous decor designs
- Optional bonding inside (adhesive technology)

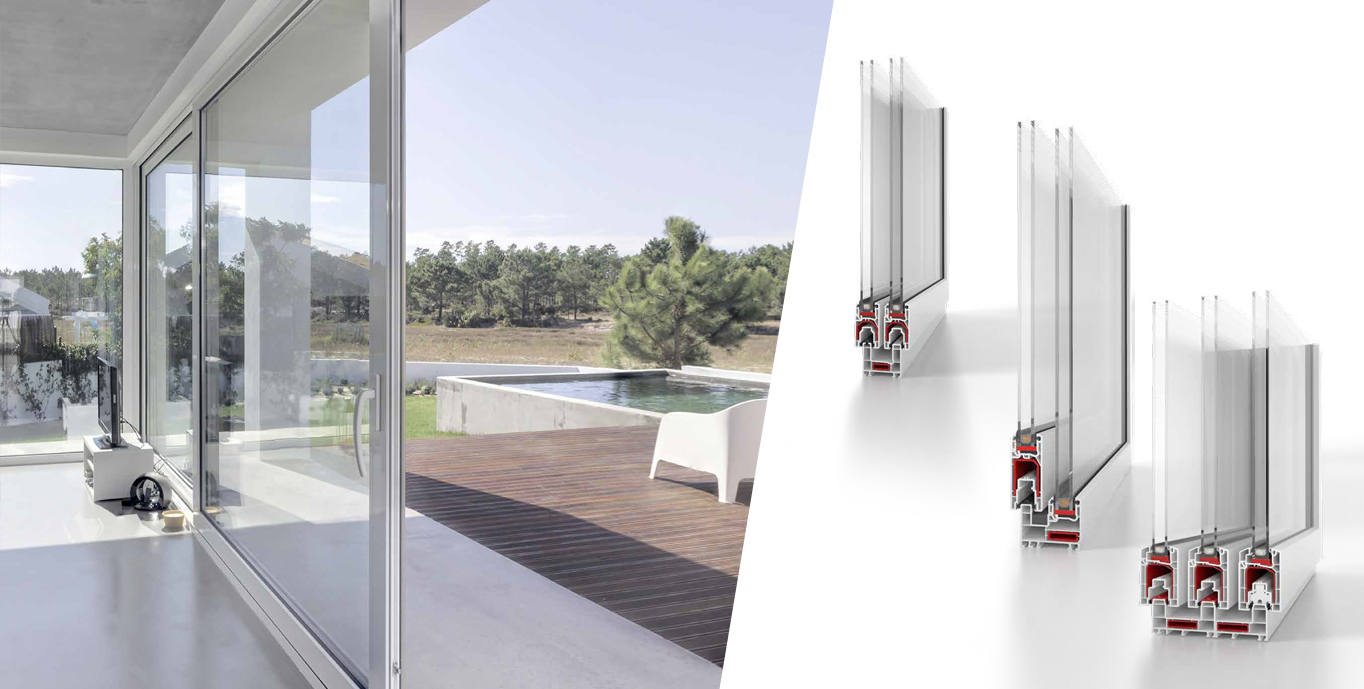

Sliding Systems
Multi-Slide
- Small construction depth of 70mm
- Uf = 1.4 W/m²K
- Glazing and panel thickness up to 41mm possible (single- to triple-glazed)
- Modern classic-line design
- Concealed hardware technology
- Selection of opening mechanisms: schema A + C
- Available in numerous decor designs
- Optional bonding inside (adhesive technology)
Easy-Slide
- Small construction depth of 70mm
- Uf = 1.4 W/m²K
- Glazing and panel thickness up to 41mm possible (single- to triple-glazed)
- Modern classic-line design
- Concealed hardware technology
- Selection of opening mechanisms: schema A + C
- Available in numerous decor designs
- Optional bonding inside (adhesive technology)
Mono-Slide
- Small construction depth of 70mm
- Uf = 1.4 W/m²K
- Glazing and panel thickness up to 41mm possible (single- to triple-glazed)
- Modern classic-line design
- Concealed hardware technology
- Selection of opening mechanisms: schema A + C
- Available in numerous decor designs
- Optional bonding inside (adhesive technology)
Laminations

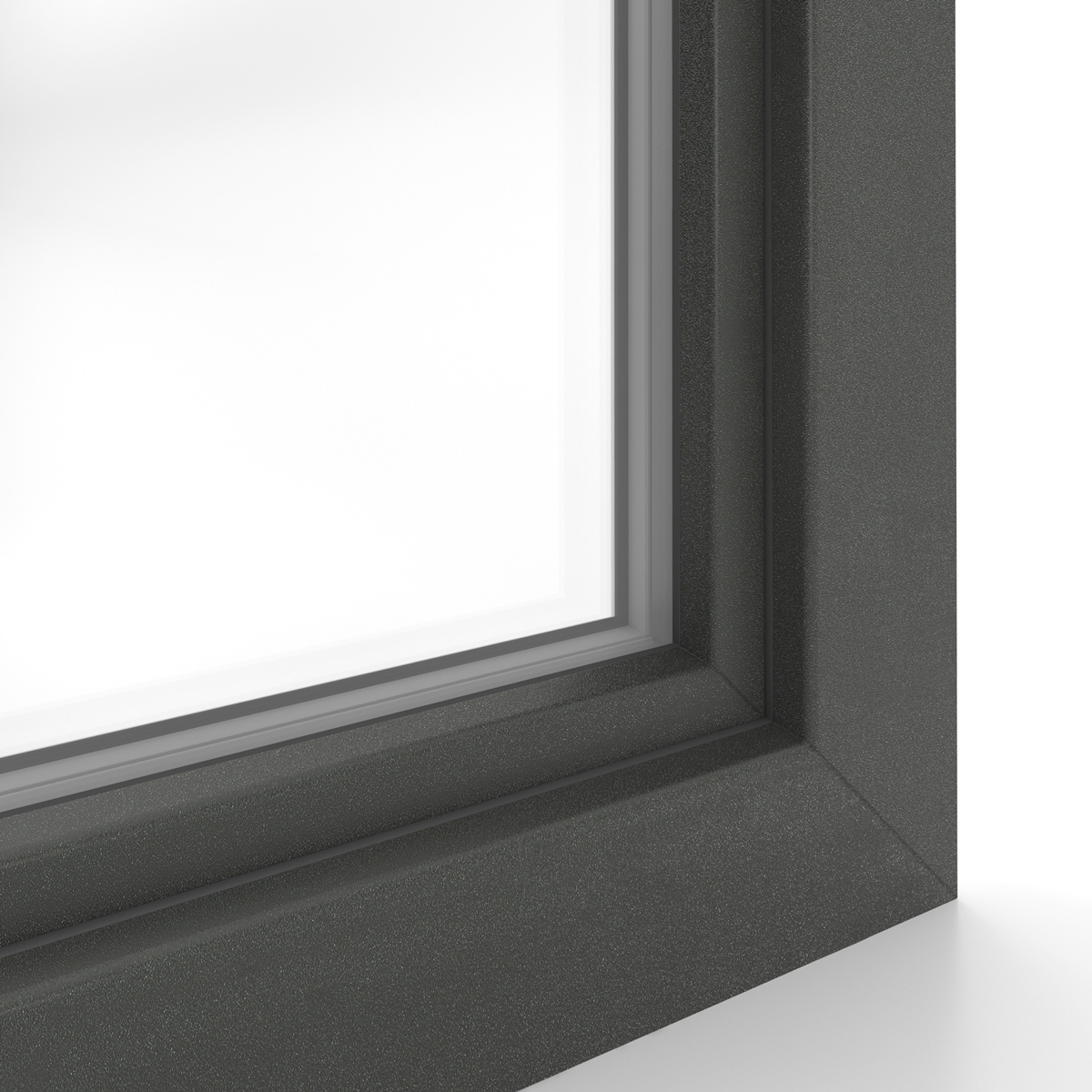

Alux DB 703
_dekor_ap_Nr_79-web.JPG)

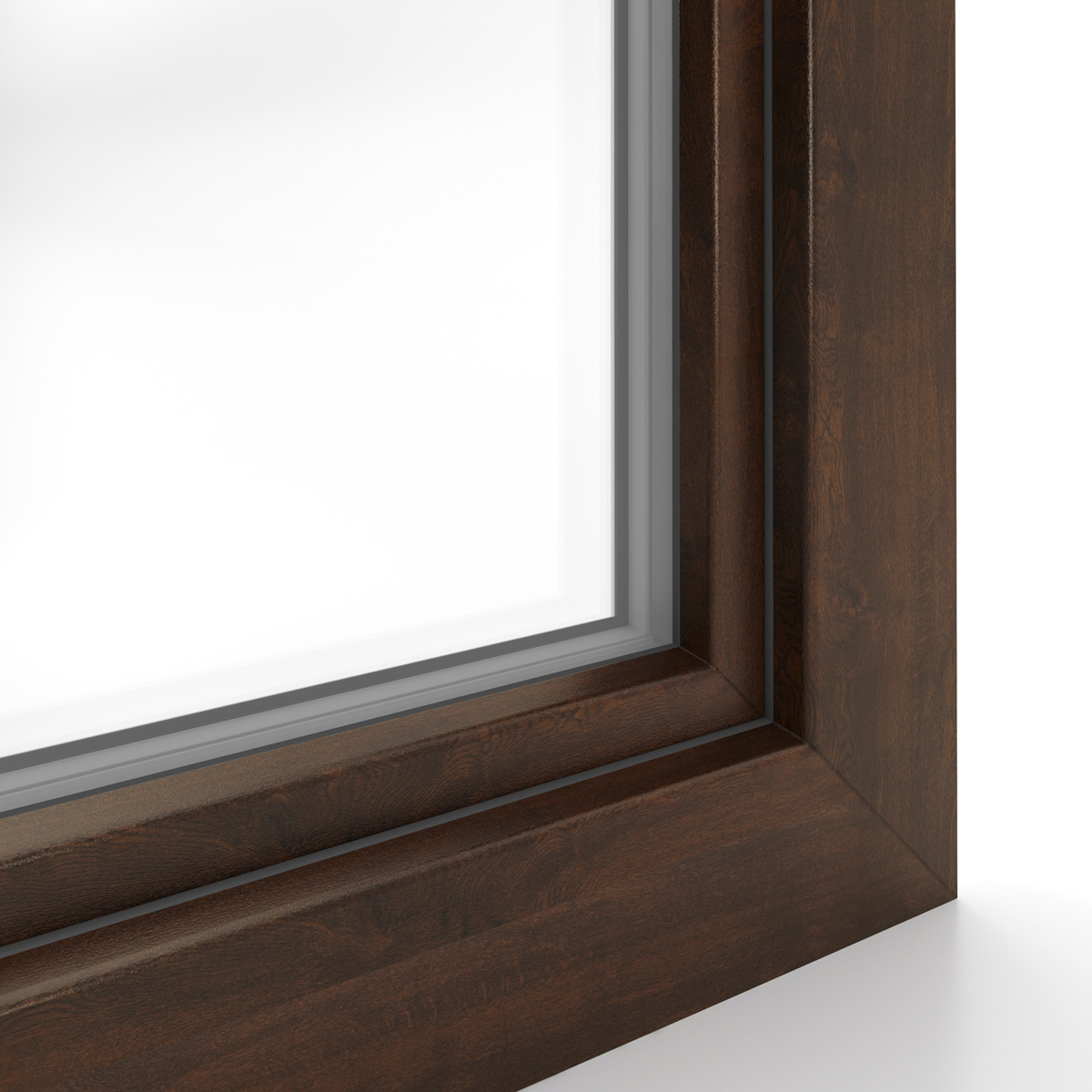

Nut Tree
_dekor_ap_Nr_27-web.JPG)

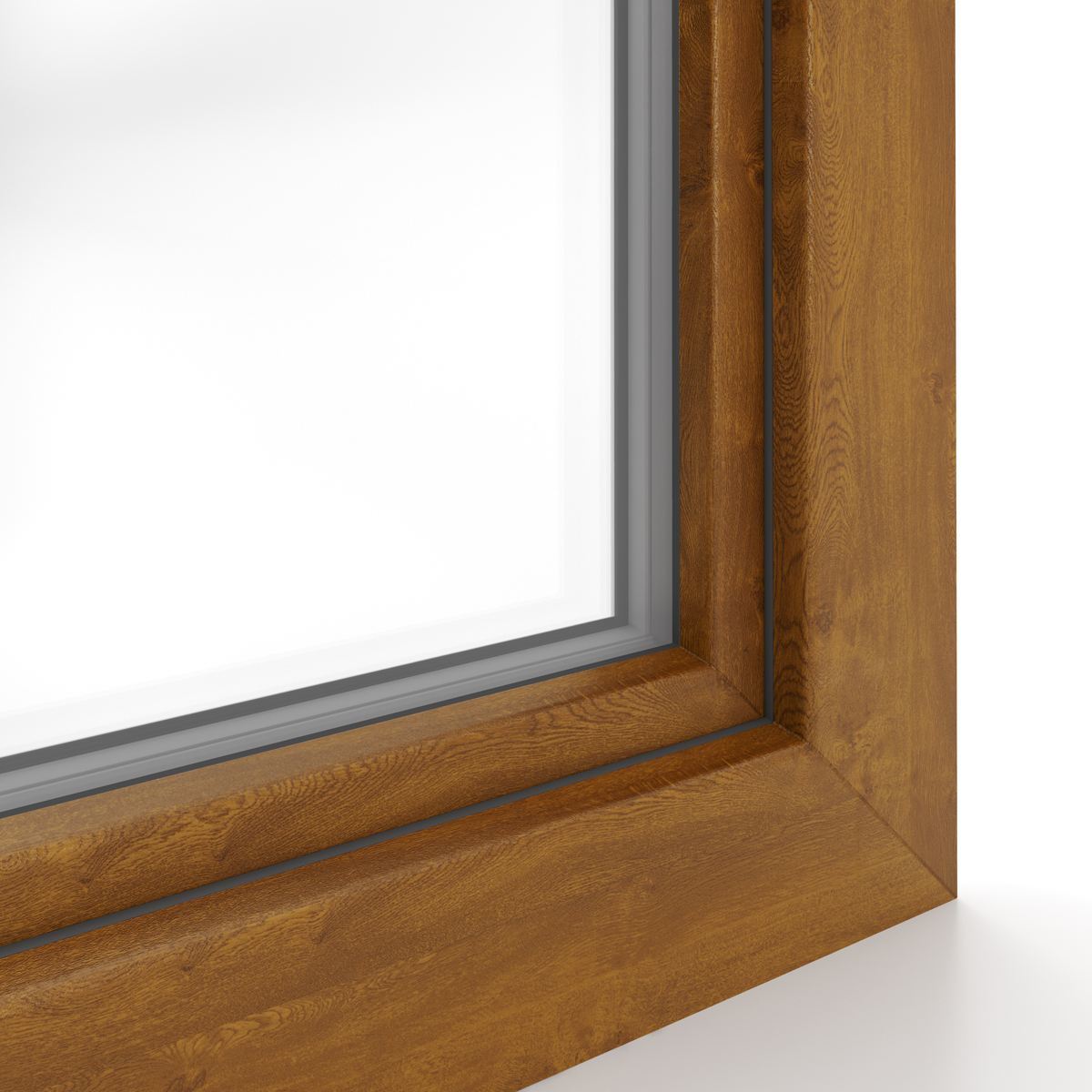

Golden Oak
_dekor_ap_Nr_23.jpg)
Mermont Oak
Mahogany
_dekor_ap_Nr_05.jpg)

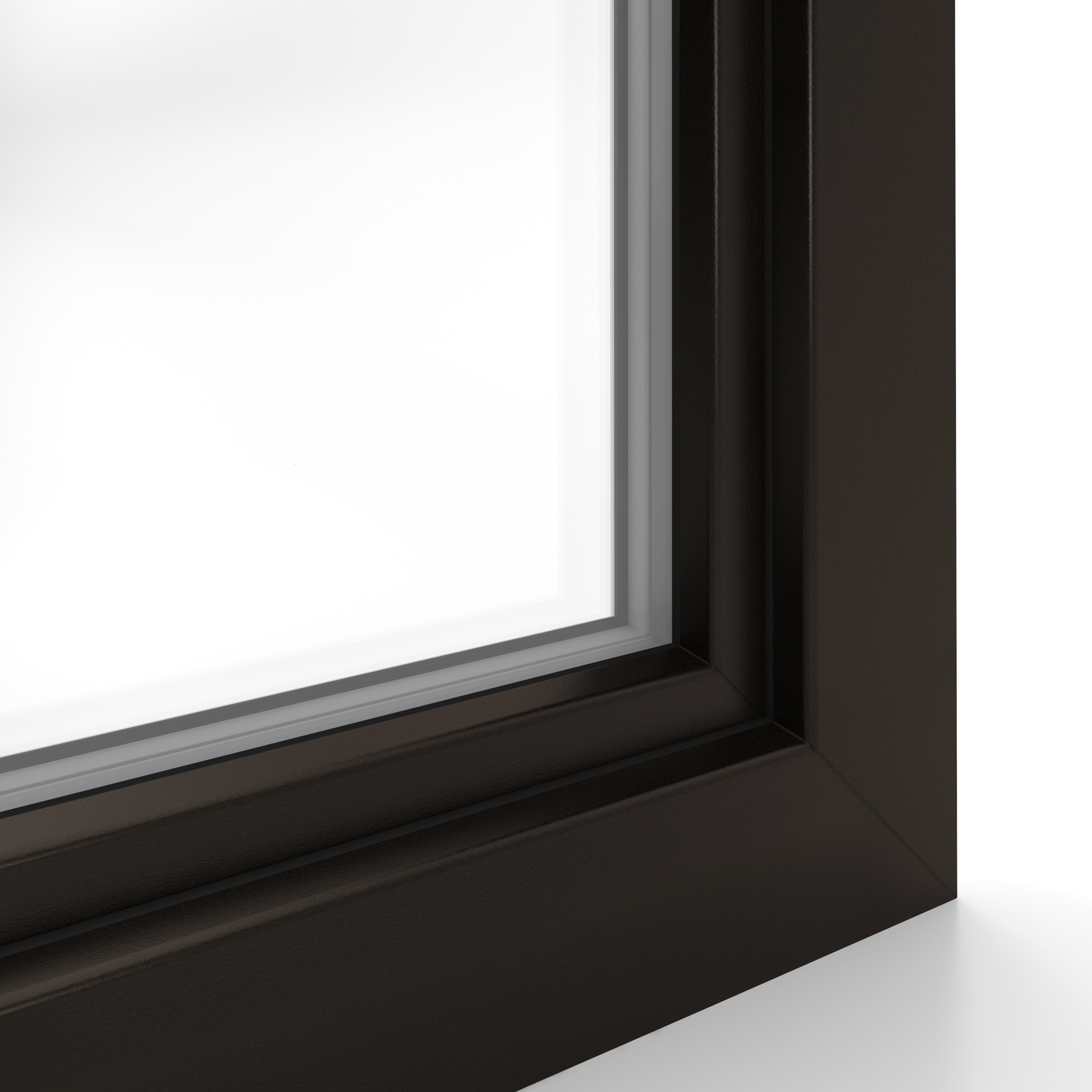

Black Brown
_dekor_ap_Nr_89_PL.jpg)

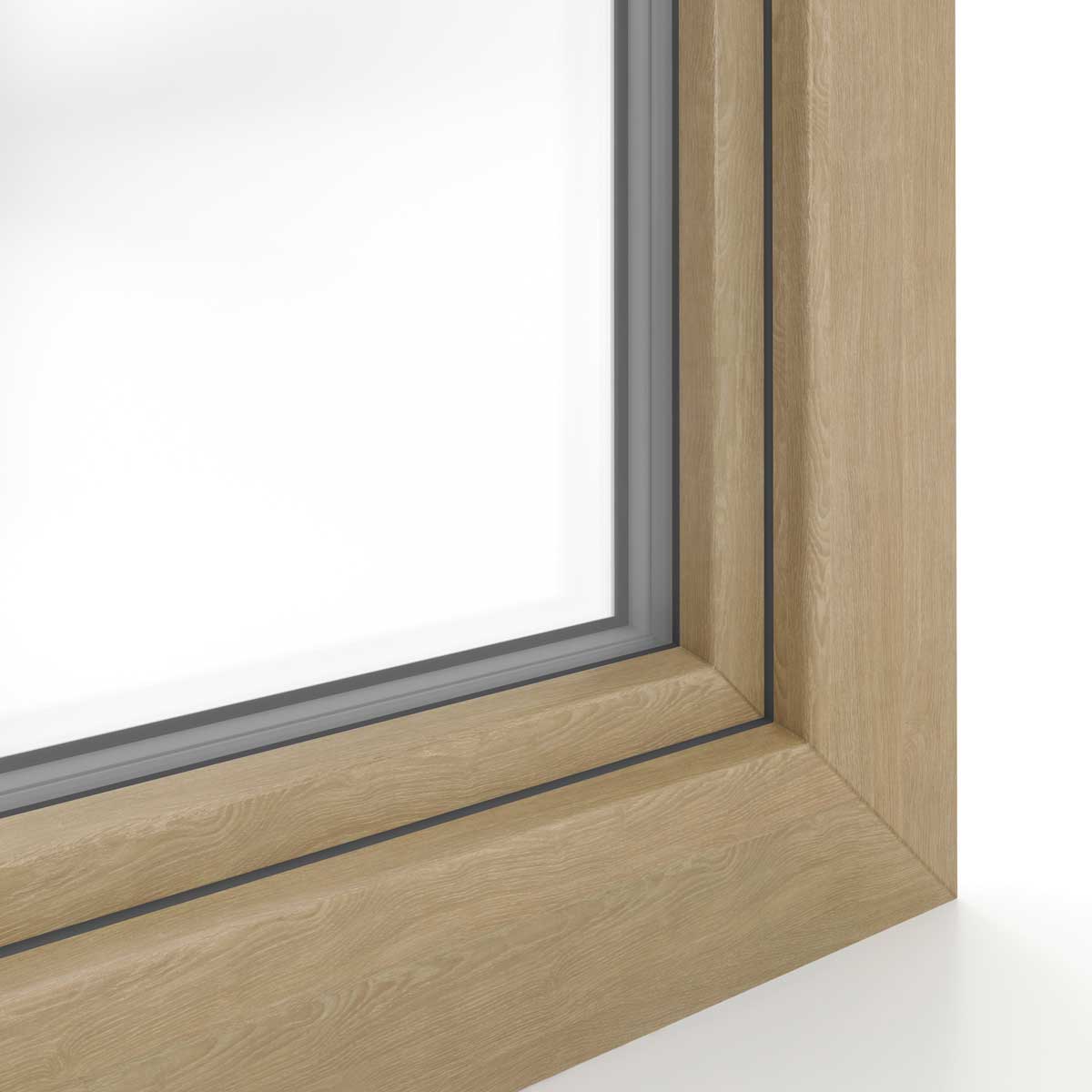

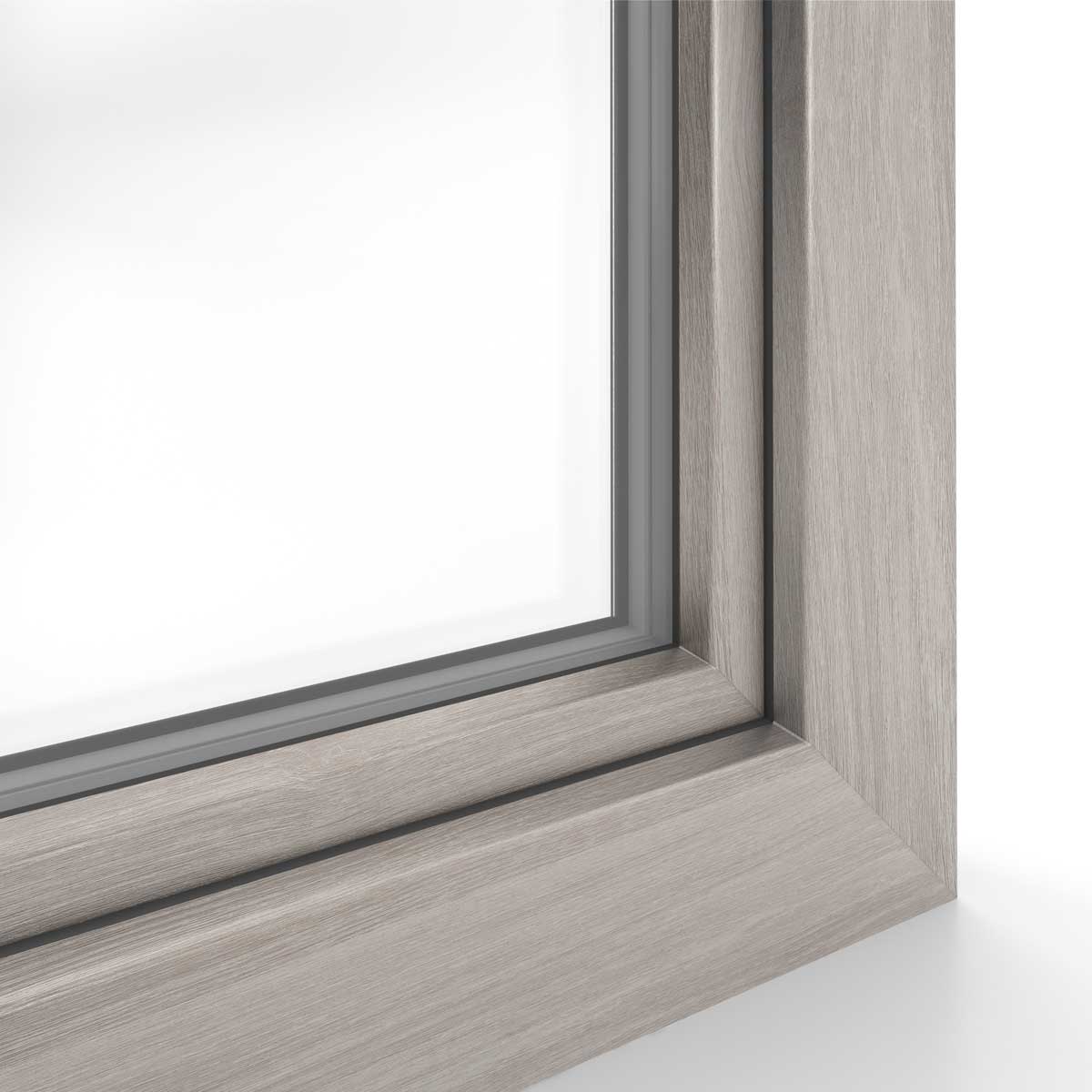

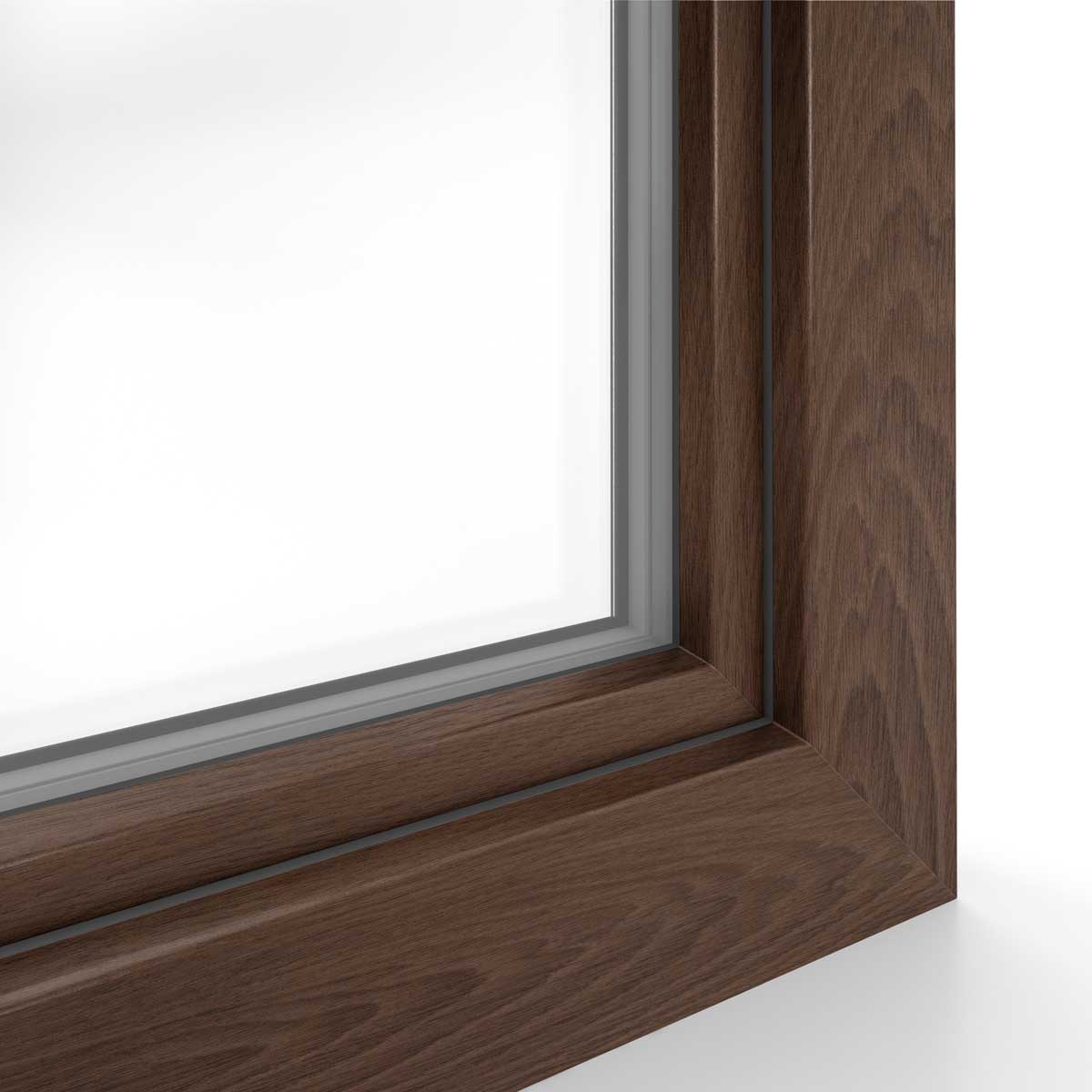

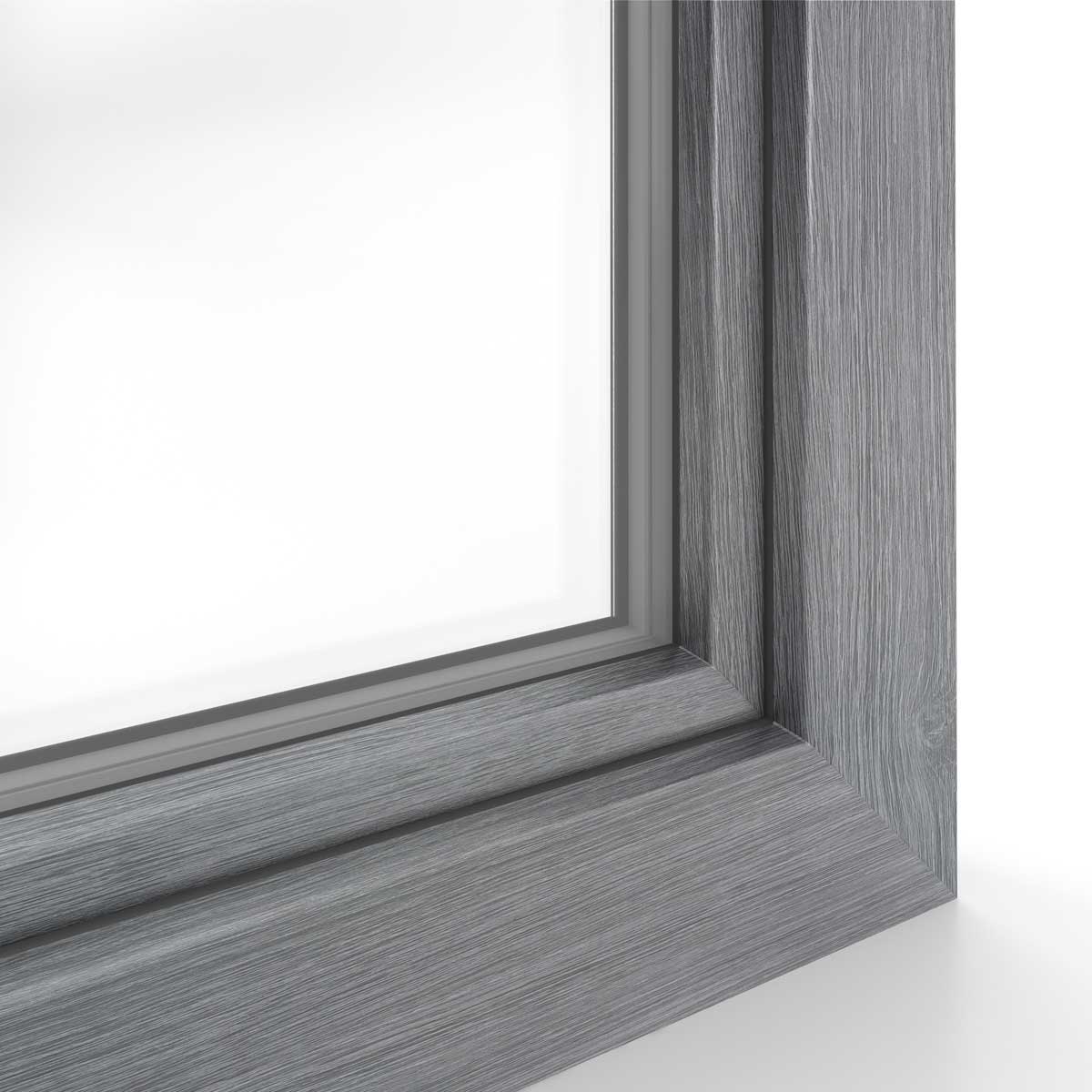

woodec
An astonishing wood look and a unique feel, combined with all the advantages of a uPVC window: this is what the new, impressive woodec surface for aluplast window and door systems offers. Use this advantage for yourself and your customers!
Sheffield Oak Alpine
Sheffield Oak Concrete
Turner Oak Toffee
Turner Oak Malt
What is uPVC?
uPVC is the acronym for Unplasticized Polyvinyl Chloride, which is a rigid and chemically resistant form of PVC. uPVC windows are crafted from sections of uPVC profile, which are cut and joined together to fit in a window. These profiles are produced by forcing molten PVC through a precision die, the material is cooled almost immediately before being cut to length.
Today, uPVC windows and windows are the most cost effective fenestration that can fit into a home. The lowest installation cost when compared with other materials, high energy savings over the life of the windows and low maintenance costs make these windows a thoroughly compelling choice. Therefore, due to its innumerable advantages over wood and aluminum window frames, it has gained worldwide popularity. In countries like UK, USA, where it is also known as vinyl or vinyl siding, uPVC has garnered more than 60% market share. In fact, 8 out of 10 people who are either replacing their windows or renovating their houses have opted for uPVC windows. With most architects and contractors shifting towards uPVC solutions, today it is considered to be the future of Indian fenestration.
